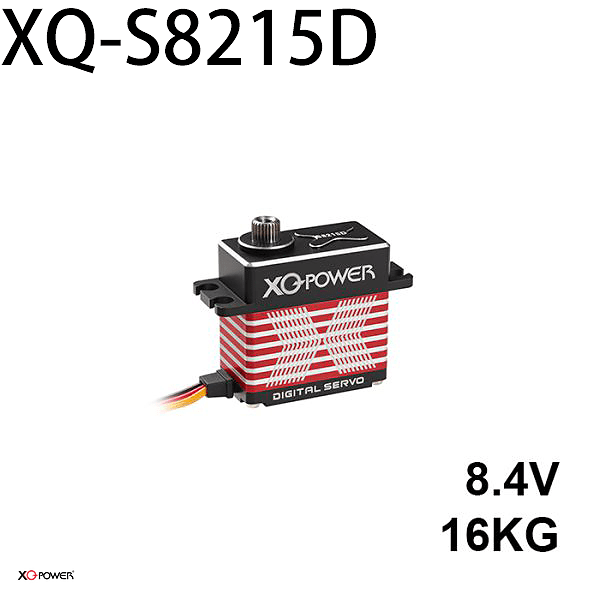

Order the XQ-POWER S8215D high speed magnetic encoder digital servo. it features 16kg torque, 0.07s speed, and coreless motor with IP68 protection.
-
Precision Positioning with a Magnetic Encoder Digital Servo
The XQ-POWER S8215D represents the absolute pinnacle of high-precision mini motion control. Specifically, it is engineered for professional applications where space is limited but accuracy is non-negotiable. Moreover, this unit utilizes a state-of-the-art magnetic encoder digital servo architecture. Consequently, it completely eliminates the physical friction and carbon wear found in traditional potentiometers. Furthermore, this contactless sensing technology ensures a lifetime of zero centering drift. In addition, this precision mini servo operates efficiently under 8.4V high-voltage platforms. Therefore, it is the premier choice for professional UAV flight surfaces and highly responsive robotic joints.
-
High-Speed Performance & Voltage Efficiency
Significantly, the S8215D stands out due to its power density in an ultra-stiff mini chassis. For instance, it achieves an incredible 0.07s/60° response speed under 8.4V direct-drive power. In fact, this makes it one of the most responsive magnetic encoder digital servos available on the B2B market today. As a result, the high-voltage platform allows for direct 2S LiPo integration without step-down regulators. Ultimately, the integrated coreless motor provides highly stable acceleration and long service life. Additionally, the digital controller provides an ultra-narrow 2 µsec dead band. Thus, it ensures lightning-fast control feedbacks with near-zero latency.
-
Structural Rigidity and Stainless Steel Metallurgy
Undoubtedly, managing constant high-speed cycles under 16kg of force requires superior construction. To illustrate, the XQ-POWER S8215D features a precision CNC aerospace aluminum case. Notably, this full metal housing acts as a highly efficient heat radiator during intense workloads. Simultaneously, it protects the heavy-duty toughened stainless steel gear train from physical wear and impacts. Meanwhile, the dual ball bearing system ensures perfectly concentric rotation with minimal friction. Consequently, the standard 25T-φ4.96mm output shaft transfers torque without physical deflection. Most importantly, this rugged design guarantees reliable performance in critical automation tasks.
-
All-Weather Splashproof Protection for Field Operations
Finally, this high-voltage magnetic encoder servo offers robust protection for specialized outdoor tasks. In particular, its certified splash-resistant design shields internal electronics from wet grass and muddy trails. Hence, it provides an incredibly cost-effective option for all-weather outdoor adventures. Clearly, the perfect synergy of stainless steel gears and waterproof sealing offers a major competitive edge. Similarly, the unit withstands extreme vibrations during high-frequency movements. Furthermore, its wide temperature range allows for deployment in diverse global climates. In conclusion, the S8215D is the ultimate high-precision slim node.
For more technical details on Brushless Servos or our Marine Robotics Solutions, please visit our [Technical Blog] or contact our engineers.
-
Frequently Asked Questions (FAQ)
Q: What is the continuous torque rating of this model? A: While the peak torque is 16kg, the continuous rating is 11.2kg. We recommend calculating your load at 70% of the continuous rating for long-term reliability in high-temperature environments.
Q: Is this servo compatible with marine or underwater environments? A: Yes, our Marine Robotics Solutions series features IP67/IP68 waterproof sealing and anti-corrosion coatings, making them ideal for ROV and subsea applications.
Q: Can I get a customized shaft or communication protocol? A: Absolutely. We offer customization for shafts, mounting brackets, and protocols (RS485/CAN bus). Contact our engineering team for a feasibility study.
Part Number: XQ-S8215D
